SUB80P

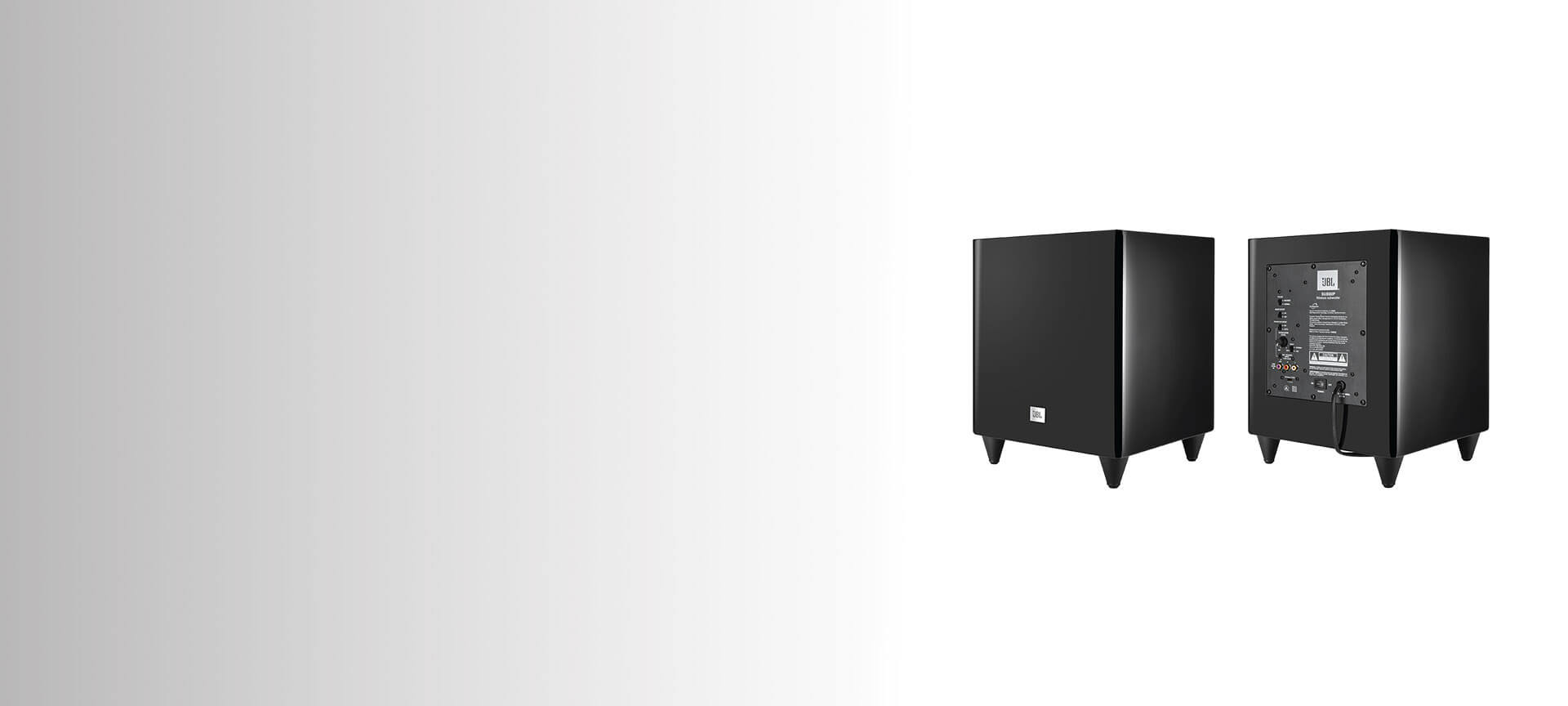

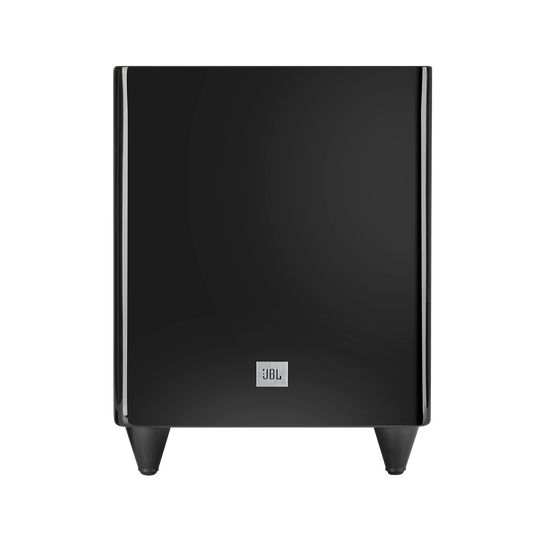

Wireless Powered Subwoofer

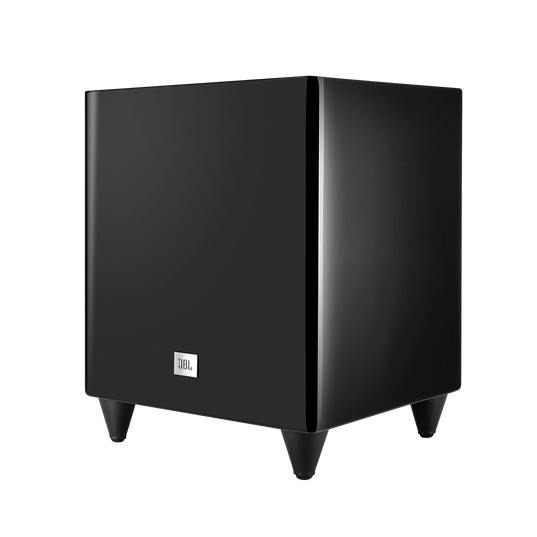

The SUB80P features an 8-inch down-firing fiber-composite cone woofer and built-in high-performance 200-watt amplifier for impactful and memorable sound quality deserving of the JBL name. The SUB80P comes in a high-gloss black finish for a stylish and elegant appearance. With the included wireless transmitter and space-efficient design the SUB80P can be placed anywhere in the room without having to run cables. Add a SUB80P to your existing speakers to create a stereo or multi-channel home theater system with impactful bass and unprecedented affordability.
Promotions
Variations

产品特点

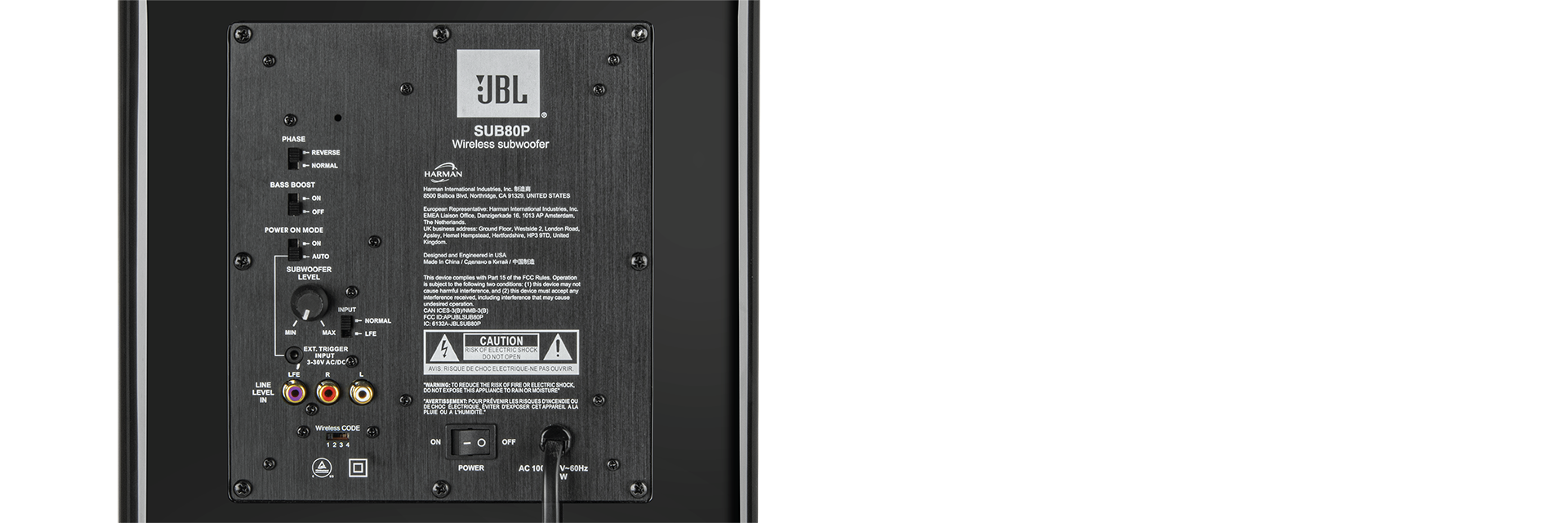

Powerful Built-in Amplifier: 200W (continuous), 400W (peak)

Powerful Built-in Amplifier: 200W (continuous), 400W (peak)

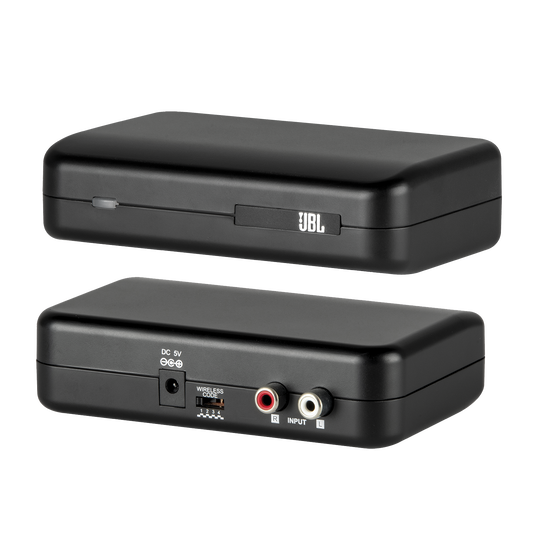

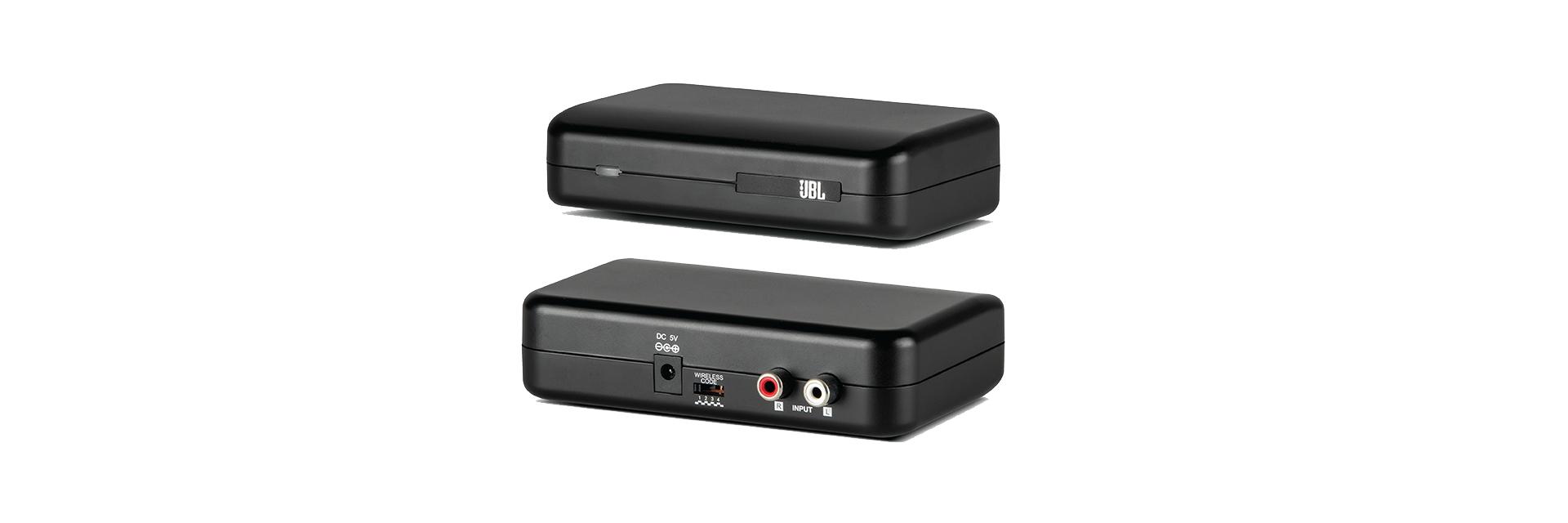

Included Wireless Transmitter allows for easy subwoofer placement

Included Wireless Transmitter allows for easy subwoofer placement

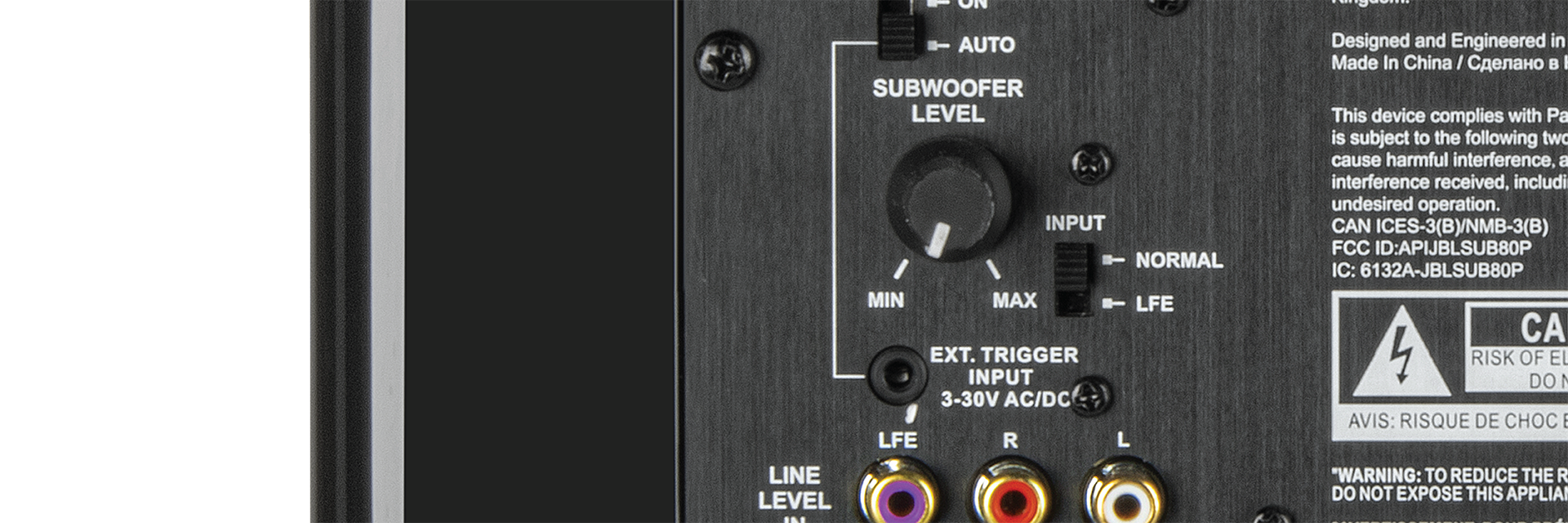

Subwoofer Level Control

Subwoofer Level Control

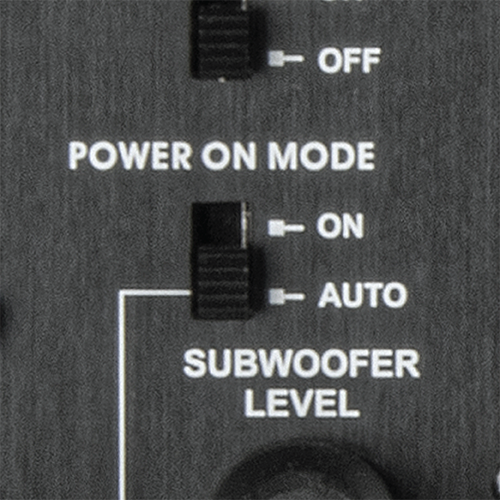

Auto / On / Trigger Power Modes

Auto / On / Trigger Power Modes

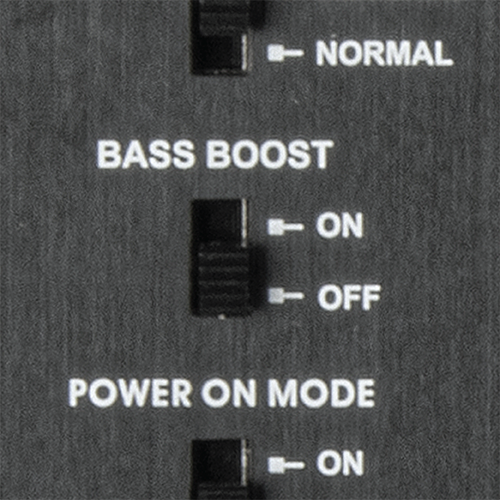

Bass Boost and Phase Control

Bass Boost and Phase Control

产品详情 & 下载

項目# JBLSUB80PBLKAS

Product Description

SUB80P Powered Subwoofer

The SUB80P features an 8-inch down-firing fiber-composite cone woofer and built-in high-performance 200-watt amplifier for impactful and memorable sound quality deserving of the JBL name. The SUB80P comes in a high-gloss black finish for a stylish and elegant appearance. With the included wireless transmitter and space-efficient design the SUB80P can be placed anywhere in the room without having to run cables. Add a SUB80P to your existing speakers to create a stereo or multi-channel home theater system with impactful bass and unprecedented affordability.

一般規格

Low-frequency Transducer 8" (200mm) down-firing fiber-composite cone
Amplifier Power 200 watts (continuous), 400 watts (peak)
Frequency Response 45Hz - 200Hz (-6dB)

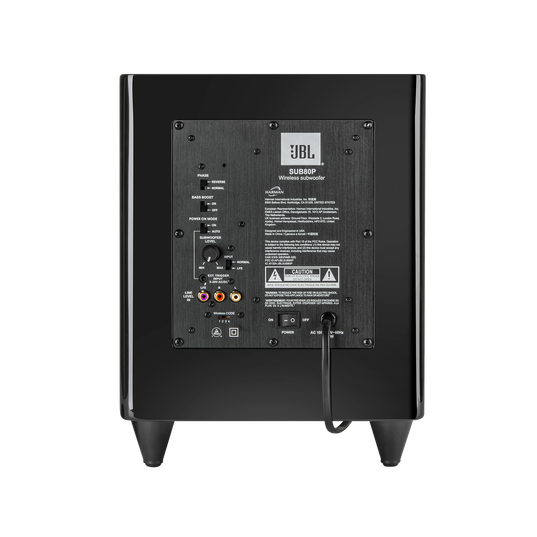

Controls Volume, phase, bass boost

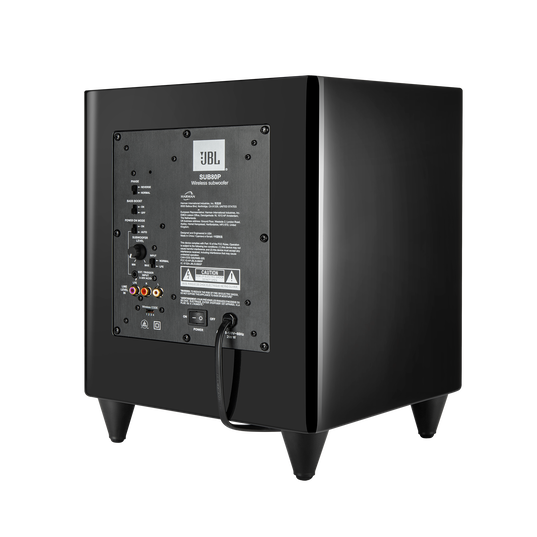

Connections LFE (RCA-type); left and right line-level (RCA-type)
Enclosure type Sealed
External Trigger Input Voltage 3-30 volts, AC or DC
Subwoofer Power requirement 120V, 60Hz (USA); 220V -240V, 50/60Hz (EU)
Subwoofer Power consumption <0.5W (standby); 243W (maximum, 120V); 261W (maximum, 230V)
Subwoofer Dimensions (H x W x D) 13.9in (353mm) x 10.5in (267mm) x 10.5in (267mm)
Subwoofer Weight 19.8lb (9kg)
Wireless Transmitter Power Requirement 100-240V AC, 50/60Hz
Wireless Transmitter Power Consumption <0.5W
Wireless Transmitter Range 32 to 82ft (10 to 25m) Line of Sight
Wireless Transmitter Dimensions (H x W x D) 1.4in (35mm) x 5in (127mm) x 3.5in (89mm)
Wireless Transmitter Weight 0.26lb (117g)
Frequency Range 2403 - 2478mHz
Max Transmitting Power 1dBm
Operating Temperature 0 - 50°C
Shipping Carton Dimensions (L x W x D) 14.1in (357mm) x 14.1in (357mm) x 17.1in (435mm)
Shipping Carton Weight (Kg) 21.4lbs (10.62Kg)
