产品特点
Nomex® spider
The 670GTi’s spider and surround are specifically designed to ensure linear motion in both forward and rearward directions. This minimizes distortion caused by the speaker’s suspension.
Kevlar® cone
The ultra-rigid Kevlar dustcap and cone body minimize unwanted cone flexing, ensuring smooth frequency response.
Copper polepiece cap
The 670GTi delivers crystal-clear vocals and midrange—even during heavy bass signals—thanks to its polepiece cap. The copper cap provides linear inductance over the full range of forward voice-coil travel, which reduces intermodulation distortion.
Vented Gap Cooling™ ports
When air gets trapped in a voice coil, it can cause distortion—and the 670GTi isn’t about to let that happen. Vents allow air to move over the voice coil, which eliminates distortion and enables superior power handling.
Voice coil
An extra long, aluminum edge-wound voice coil provides high excursion for improved low-frequency capability. The two-inch diameter, over-hung voice coil reduces distortion at low frequencies and high input power.
Oversized tweeter voice coil
The one-inch, edge-driven textile dome tweeter employs an oversized voice coil, which increases power handling and lowers distortion at high output levels, and produces a flatter overall frequency response.
Extended-range dome tweeter
The 670GTi’s tweeter plays all the way out to 30kHz, so you hear every bit of detail and nuance that your music has to offer.
Precision crossover network
Technology and construction you might find in a premium home loudspeaker are right at home in the 670GTi’s crossover network. Aluminum-encased, wire-wound resistors and heavy-trace printed circuit boards greatly increase heat dissipation and power handling, maximizing the amount of amplifier power that reaches the woofer and tweeter.
产品详情 & 下载

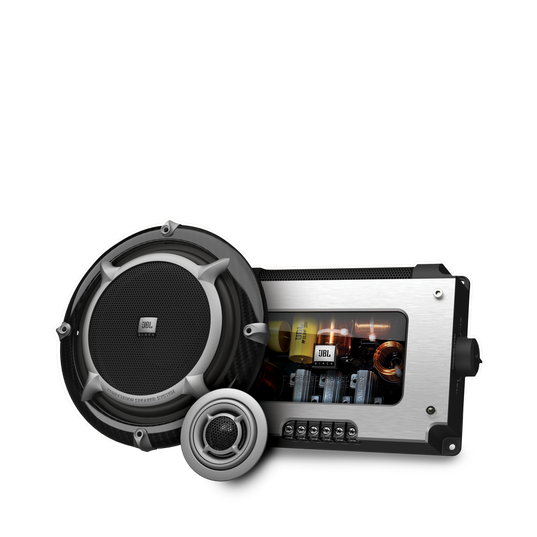

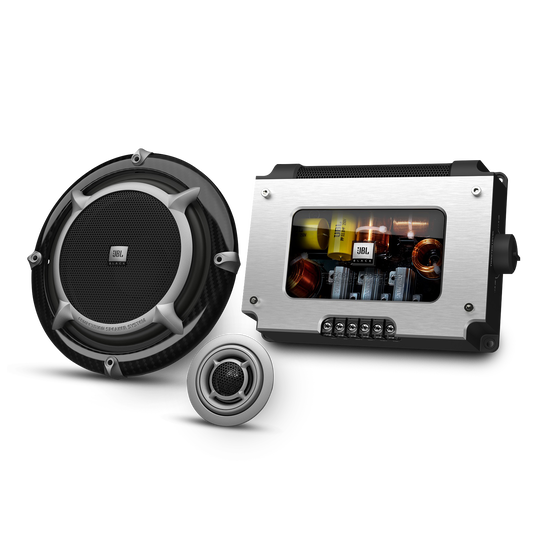

項目＃ 670GTI
Product Description
A legend is reborn
一般規格
Audio Specifications
盒內所裝配件
- 1 pair of midrange speakers
- 1 pair of tweeters
- 1 pair of passive crossovers
- 1 pair of carbon fiber grilles
- 1 foam gasket set for midranges
- 1 pair of I-mount™ kits for tweeters
- 1 pair of spider mounts for tweeters
- 1 pair of quad mounts for tweeters
- Owner’s manual
用户手册 和下载
最新的用户手册，快速指南和文档
