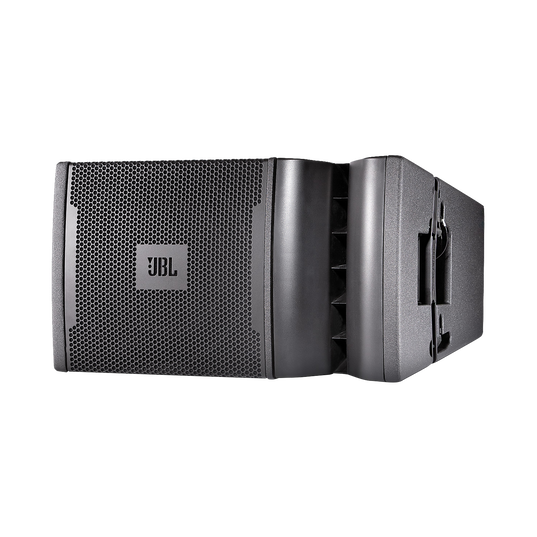

JBL VRX932LAP

JBL VRX932LAP

12" Two-Way Powered Line Array Loudspeaker System

Variations



批發查詢: 點擊這裡

产品特点

Built-in JBL DrivePack® DPC-2 amplifier module designed by Crown

Built-in JBL DrivePack® DPC-2 amplifier module designed by Crown

Provides 1750 Watts of peak power. DSP-based resident input module provides system optimization and EQ.

JBL’s exclusive neodymium magnet Differential Drive® woofer

JBL’s exclusive neodymium magnet Differential Drive® woofer

For high-power capacity and light weight

3 x 2408J Annular Ring Diaphragm HF drivers

3 x 2408J Annular Ring Diaphragm HF drivers

The 2408 represents the latest in JBL Professional compression driver design

Constant Curvature waveguide

Constant Curvature waveguide

For unprecedented array coherence

Integral rigging hardware

Integral rigging hardware

For simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.

Array Configuration Selector

Array Configuration Selector

Permits “array shading”

Durable construction

Durable construction

VRX900 Series enclosures are constructed with premium quality birch plywood. Coated in JBL's rugged DuraFlex™ finish and heavily braced the systems are extremely durable, not to mention rigid and resonance free. The heavy duty steel grilles are internally lined with acoustically transparent foam to provide additional driver protection.

产品详情 & 下载

項目#: VRX932LAP

Product Description

12" Two-Way Powered Line Array Loudspeaker System

The VRX932LAP is a powered, two-way, full-range line array speaker system. It is intended for small to mid size venues. The JBL DrivePack® DPC-2 amplifier module provides the power and the integrated DSP based input module system optimization and EQ. Since each VRX932LAP has a vertical coverage of 15°, line arrays up to 5 x 15° = 75° vertical included angle can be attained. Each cabinet houses 3 HF drivers mounted at equal distance on a waveguide. When combining multiple cabinets, (creating a continuous arc) the distance between the drivers to the adjacent cabinets remains the same creating a constant curvature line source. Furthermore the coverage can be optimized by means of the Array Configuration Selector (ACS), an amplitude shading feature. Built-in rigging hardware, a dual angle pole mount socket and an array frame provide a variety of suspension options.

一般規格

覆蓋範圍(標稱) 100° x 15°
頻率範圍Hz(-10 dB) 57 - 20,000
頻率響應Hz(±3 dB) 75 - 20,000
最大聲壓級(峰值dB) 136
額定功率(W,連續) 875
額定功率(W,峰值) 1750

尺寸圖

深度 (英吋) 17.5
深度 (毫米) 444.0
高度 (英吋) 13.75
高度 (毫米) 349.0
重量(kg) 24.0
重量(lbs) 52.0
寬度 (英吋) 23.5
寬度 (毫米) 597.0

Design

Enclosure 25/15 mm, 11-ply birch plywood
Suspension / Mounting Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
Finish Black DuraFlex™ finish
Grille Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam

Features

雙角桿式插座 是的
Transducer Differential Drive JBL 是的
提供JBL專業調音和表現 是的
M10懸掛點 是的
