Control One

Award Winner

Control One - Black - 2-Way, 100mm (4") Bookshelf Speaker - Hero

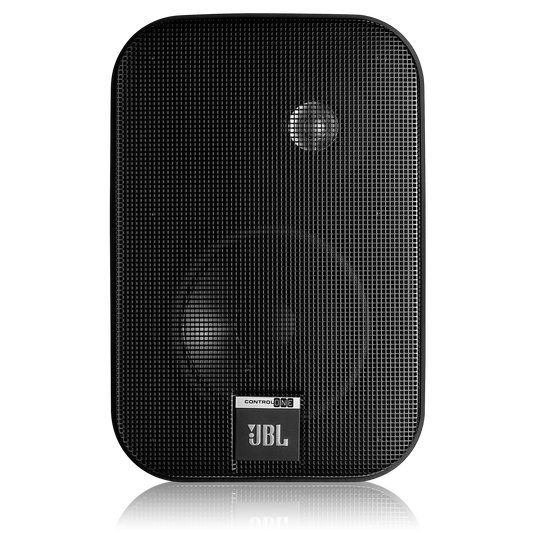

Control One - Black - 2-Way, 100mm (4") Bookshelf Speaker - Front

Control One - Black - 2-Way, 100mm (4") Bookshelf Speaker - Detailshot 1

Control One - Black - 2-Way, 100mm (4") Bookshelf Speaker - Detailshot 3

产品特点

25 – 200 watts suggested amplifier power range

JBL engineers designed the Control One bookshelf loudspeaker to deliver enhanced, room-filling sound from a compatible AVR (audio/video receiver) or 25- to 200-watt power amplifier.

Two-way speaker configuration

They’re low profile at just 9 inches (229 millimeters) high, 6 inches (156 millimeters) wide and 5-1/2 inches (140 millimeters) deep, but the JBL Control One’s two-way speaker design and quality cones reproduce a wide range of frequencies for realistic, room-filling, can’t-believe-your-ears imaging.

4" (100mm) woofer and 1/2" (12mm) titanium-laminate tweeter

When the JBL name is on a speaker such as a Control One, you know you’re getting big, room-rocking bass straight from the professional recording studio. Titanium technology in JBL tweeters is another studio idea. Titanium’s strength and light weight make it perfect for quickly and accurately reproducing crystal-clear high frequencies without strain or distortion, even when the volume is cranked up.

Outstanding audio output

Sure, they’re personal-size, but each Control One AW speaker offers a peak power-handling capacity of 200 watts. That much power ensures distortion-free reproduction of your favorite music.

Wide, accurate frequency response

Nothing in the Control One AW is over- or underemphasized. Delivering a frequency response of 80Hz to 20kHz, this speaker reproduces the full range of sound from deep bass tones to ultrahigh frequencies. With JBL speakers, what you hear is true.

Magnetically shielded for video proximity

Put the JBL® Control® One speakers anywhere that makes sense in your home theater set-up. They’re magnetically shielded for placement on the floor or wherever you want it, including right near your TV or video display.

Easy setup

Want to mount Control One speakers on a wall? The package includes a pair of wall brackets.

产品详情 & 下载

項目＃: CONTROL ONE

Product Description

Take great audio performance throughout your house

You can have the world-famous JBL® sound anywhere you want it: tucked away in a bookshelf, on your desk, in the kitchen, in a home theater or studio, mounted easily up on a wall or even as part of a multiple-room home music system. The rugged, compact enclosures feature a 4" woofer and a 1/2-inch titanium laminate tweeter for a smooth frequency response of 80Hz to 20kHz. The JBL® Control® One speakers have a peak power-handling capacity of 200 watts and include magnetic shielding to prevent interference with your TV or computer display. Put them anywhere. If you need big, accurate, full-range audio with a simple, low profile, this is your answer.

一般規格

Type Bookshelf

Wall-Mount Capable Yes

Finish Black

Series Control Series

Grille Color Black

Audio Specifications

Power Handling (Peak) 200W

Nominal Impedance 8 Ohms

Maximum Recommended Amplifier Power 100W

Sensitivity (2.83V@1m) 89dB

Frequency Response 80Hz – 20kHz

Power Handling (Recommended) 50W

尺寸圖

Depth (mm) 139

Width (mm) 155

Weight (lb) 5.4

Weight (kg) 2.4

Height (mm) 228

控制和連接規格

Connector Type Direct Wiring

盒內所裝配件

2 x CONTROL ONE Bookshelf Speaker
2 x Wall-mount brackets
1 x Owner's Manual
