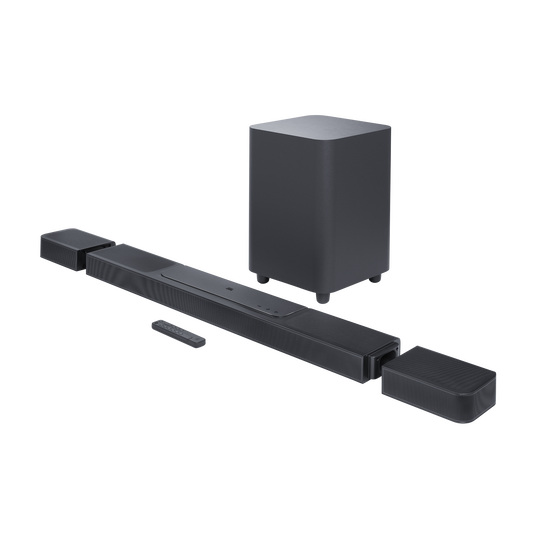

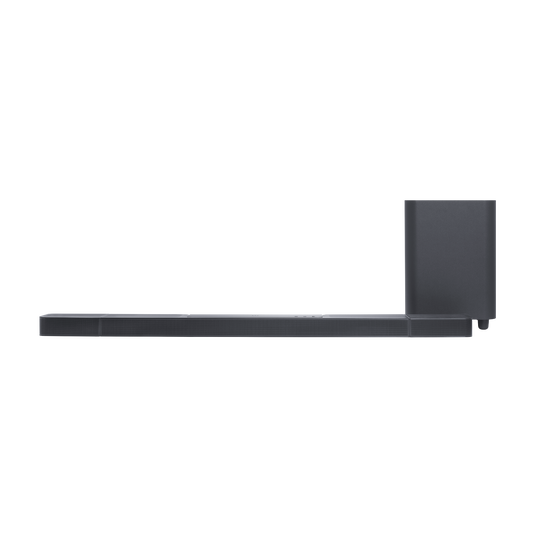

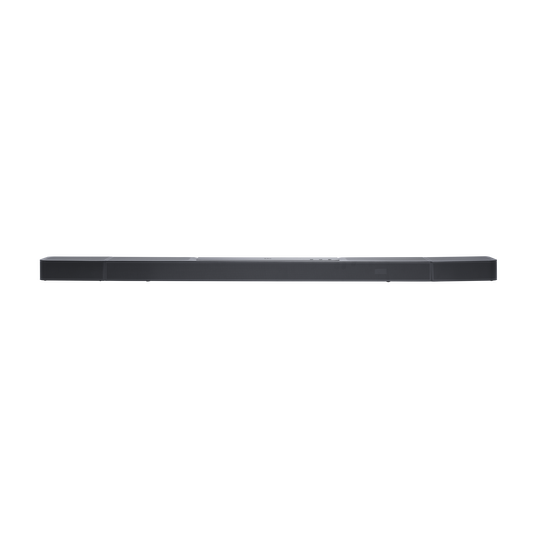

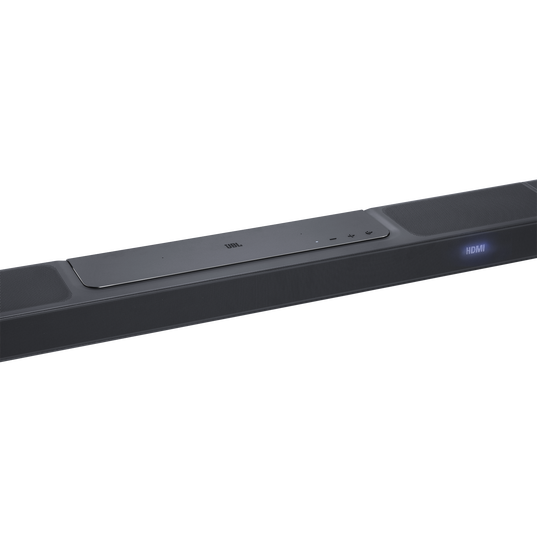

JBL BAR 1300

Features

True Dolby Atmos®, DTS:X, and MultiBeam™ Surround Sound

Immerse yourself in theater-quality 3D sound. With four up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1300 delivers true Dolby Atmos® and DTS:X together with MultiBeam™ for an enhanced 3D surround sound experience.

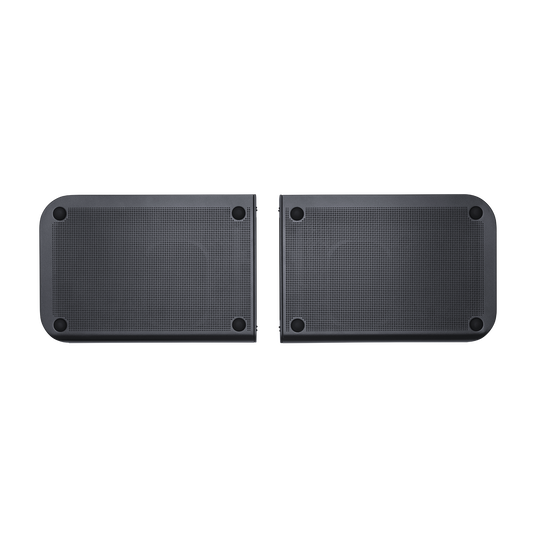

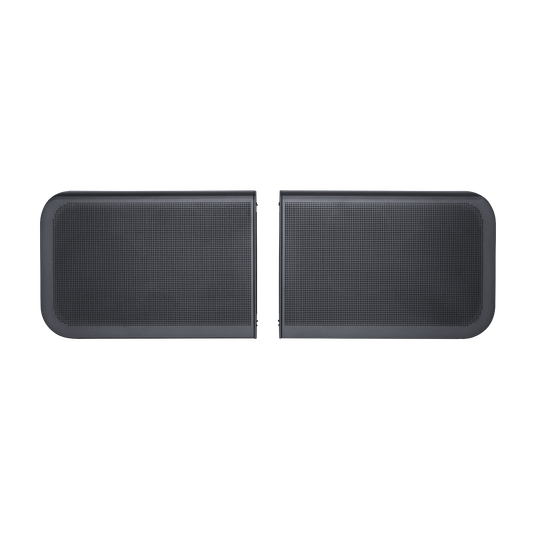

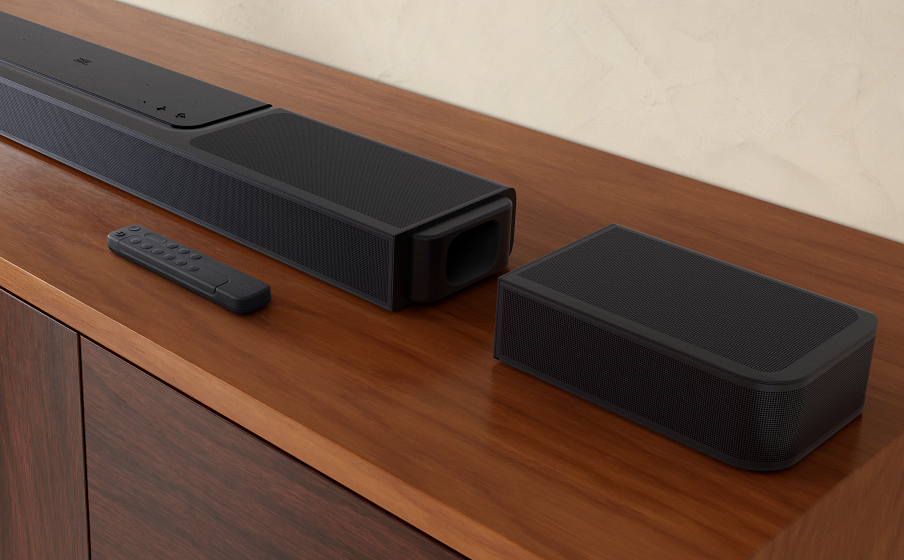

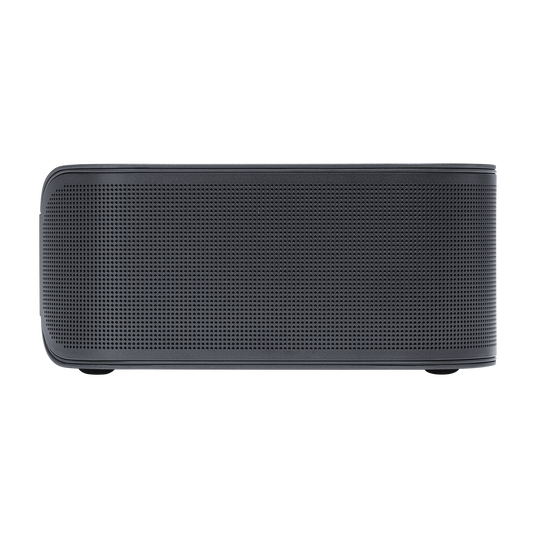

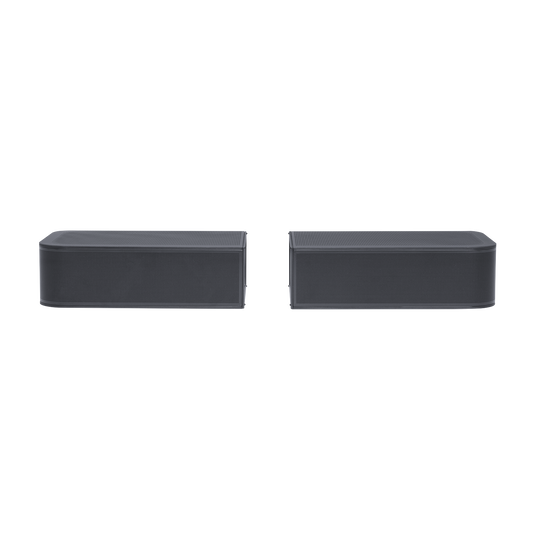

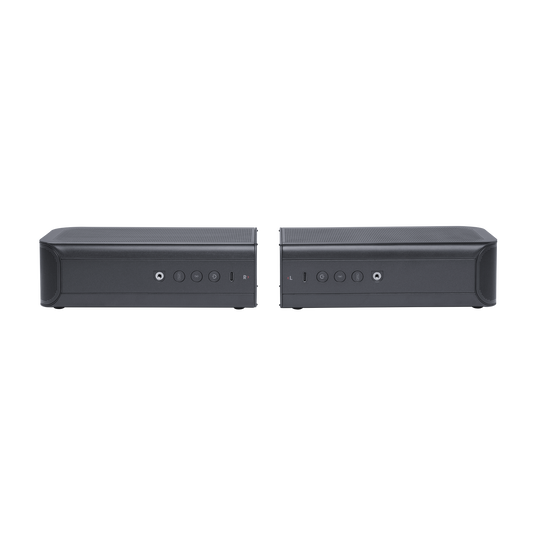

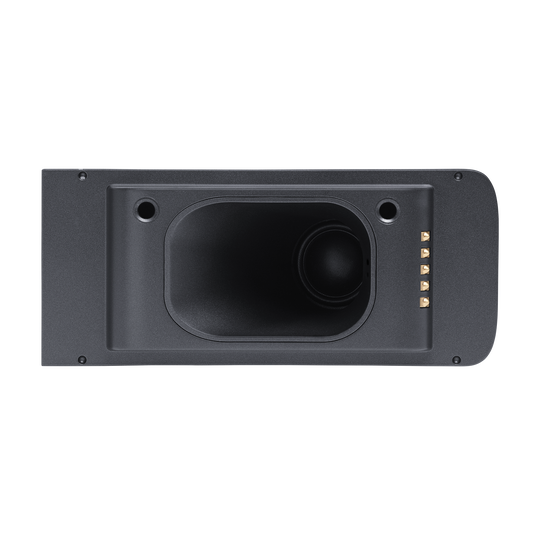

Real surround sound with detachable surround speakers

Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™

Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

1170W output power

With 1170 watts of total system power, the JBL Bar 1300 transforms your movies, music and games into immersive sound experiences and pulls you into the middle of the action.

10" Wireless subwoofer

Thrilling, precise bass from a mighty 10" wireless subwoofer brings the excitement to your action movies and the emotion to your music.

Standalone Bluetooth speaker

You can pair one of the detachable wireless speakers to any Bluetooth device to use as a standalone speaker, or pair them together for a powerful stereo sound.

PureVoice Dialogue Enhancement Technology

PureVoice technology uses our unique algorithm to optimize voice clarity to ensure you never miss a word of dialogue, even when the surround effects are at their peak.

HDMI eARC with 4K Dolby Vision passthrough

Enjoy uncompressed Dolby Atmos surround sound through a single HDMI cable thanks to the HDMI eARC connection. The three HDMI input connections also offer 4K video quality from a compatible video player or gaming console.

JBL One App

Customize EQ and control all of your compatible speakers with a single convenient app. The JBL One app helps you easily set up the soundbar, personalize settings, and browse the integrated music services to find your new favorite song.

Easy sound calibration

Every room is different. Our calibration feature ensures that the JBL Bar 1300 delivers the best 3D surround effects for any interior and room layout.

Works with voice assistant-enabled speakers

Simply link the JBL Bar 1300 with your voice assistant-enabled device and you can instantly ask Alexa, Google Assistant, or Siri to stream all your favorite music to the soundbar.

Specs & Downloads

Item#: JBLBAR1300BLKAS

General Specifications

Sound system 11.1.4 channel

Power supply 100 - 240V AC, ~ 50/60Hz

Networked standby power < 2.0W

Operating temperature 0°C - 45°C

Audio Specifications

Total speaker power output (Max @THD 1%) 1170W

Soundbar output power (Max @THD 1%) 650W

Surround speaker output power (Max @THD 1%) 2x 110W

Subwoofer output power (Max. @THD 1%) 300 W

Soundbar transducer 6x (46x90)mm racetrack drivers, 5x 0.75" (20mm) tweeters, 4x 2.75" (70mm) up-firing full-range drivers

Surround speaker transducer (46x90)mm racetrack driver, 0.75" (20mm) tweeter, 2.75" (70mm) up-firing full-range driver, 2x (48x69)mm rounded rectangle Passive Radiators

Subwoofer transducer 10” (260mm)

Frequency response 33Hz - 20kHz (-6dB)

Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D) 1376 x 60 x 139 mm / 54.2" x 2.4" x 5.5"

Main soundbar dimensions (W x H x D) 1000 x 60 x 139 mm / 39.4" x 2.4" x 5.5"

Detachable surround speaker dimensions (each) (W x H x D) 202 x 60 x 139 mm / 8" x 2.4" x 5.5"

Subwoofer dimensions (W x H x D) 305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight 4.3kg / 9.5 lbs

Detachable surround speaker weight (each) 1.25 kg / 2.75 lbs

Subwoofer weight 10 kg / 22 lbs

Packaging dimensions (W x H x D) 381 x 1107 x 477 mm/ 15" x 43.6" x 18.8""

Packaging Weight 21.45 kg / 47.2 lbs

Control and Connection Specifications

USB port Type A

USB rating 5V DC, 0.5A

Supporting file format MP3

MP3 codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate 16 - 48 kHz

MP3 bitrate 80 - 320 kpbs

Bluetooth version Main bar - 5.0, Detachable surround speaker - 5.2

Bluetooth profile Main bar - A2DP 1.2 and AVRCP 1.5, Detachable surround speaker - A2DP 1.3 and AVRCP 1.6

Bluetooth transmitter frequency range 2400MHz – 2483.5MHz

Bluetooth transmitter power <15dBm (EIRP)

Wi-Fi network IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

2.4G Wi-Fi transmitter power < 20dBm (EIRP)

5G Wi-Fi transmitter frequency range 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless frequency range 2406 - 2474MHz

2.4G wireless power ＜10dBm (EIRP）

Battery

Lithium battery 3.635V, 6600 mAh

Detachable surround speaker playtime up to 12 Hours (may vary according to content type and volume level)

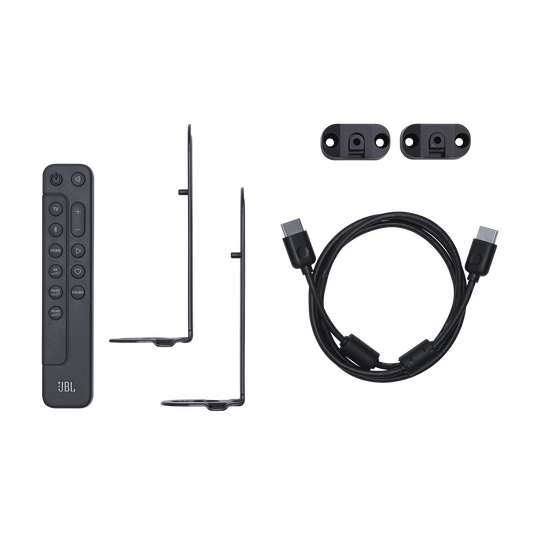

What's in the box?

1x Main soundbar
2x Detachable wireless surround speakers
1x Wireless subwoofer
Remote control with 2 x batteries
Power cords (up to 8pcs depending on region SKUs)
1 x HDMI cable
2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws

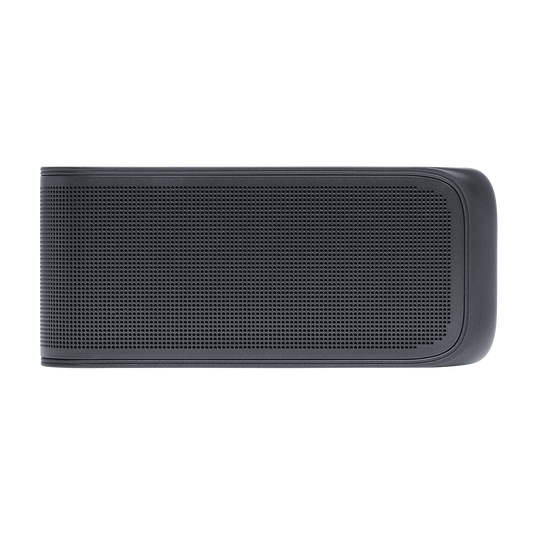

2 x Side caps
Quick start guide
Safety instruction and Warranty card
Wall mount template

Documents & Downloads

The latest owner's manuals, quick start guides, and documents.

Declaration of Conformity

450 KB

Quick Start Guide (Multilingual)
